Well Service and Stimulation Pump Fluid Ends



All AmeriFrac Fluid Equipment are designed and manufactured in the U.S.A. and include the following:



    • Produced from U.S. Made forgings in grades, 4330 Vanadium steel or, Super-Maxx 17-4 Stainless
    • Enhanced design through 3D modeling and Finite Element Analysis (FEA)
    • Discharge pressure ratings based on OEM specifications
    • Discharge and guage connections configured per customer requirements
    • Available as loaded assemblies or bare blocks

Available Models:

Legacy Series

AF600          600HP Triplex, 6″ Stroke, 9″ Centers
AF1000        1000HP Quintuplex, 6″ Stroke, 9″ Centers
AF2250        2250HP Triplex, 8″ Stroke, 12″ Centers
AF2400        2400HP Triplex, 10″ Stroke (for *FMC WT2400)
AF2500        2500HP Qunituplex, 8″ Stroke, 10″ Centers
AF2500        2500HP Quintuplex, 60″ Y Block, 8″ Stroke, 12″ Centers
AF2500        2500HP Triplex, 10″ Stroke (for *SPM TWS2500)

AFE XL – Series

AF2250XL           2250HP Triplex, 8″ Stroke, 12″ Centers
AF2400XL           2400 Triplex, 10” stroke (for *FMC WT2400)
AF2500XL           2500HP Quintuplex, 8″ Stroke, 10″ and 12″ Centers
AFE2500XL-DES      2500HP Triplex, 10″ Stroke w/ Integral Stuffing Box (for *SPM TWS2500)
AF2700XL           2700 Quintuplex, 10” stroke (for *FMC WT2700)

LEGACY SERIES:

MODEL: AF600

600HP Triplex, 6″ Stroke, 9″ Centers

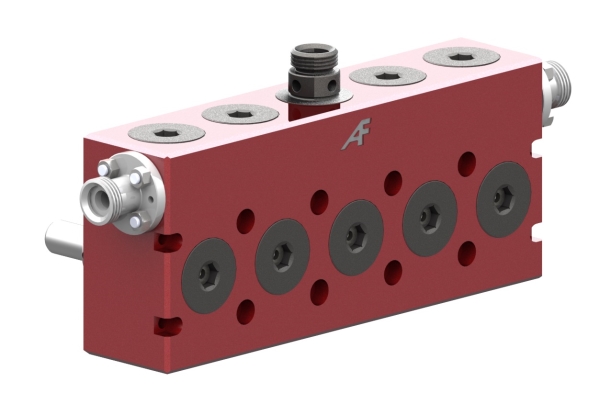

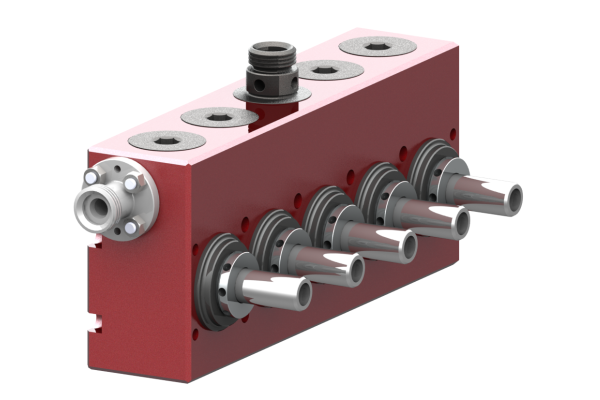

MODEL: AF1000

1000HP Quintuplex, 6″ Stroke, 9″ Centers

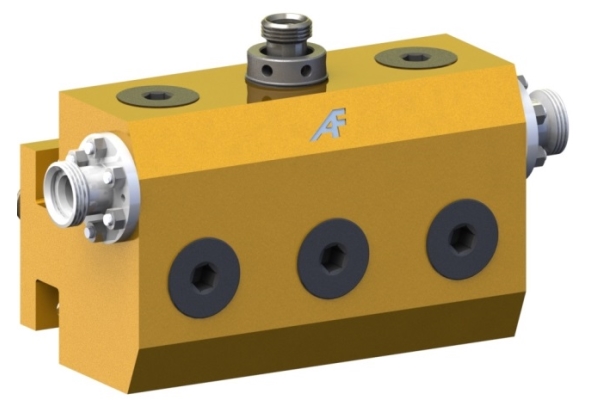

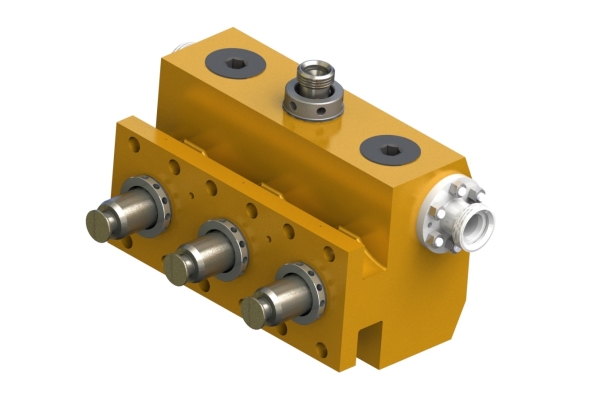

MODEL: AF2250

2250HP Triplex, 8″ Stroke, 12″ Centers

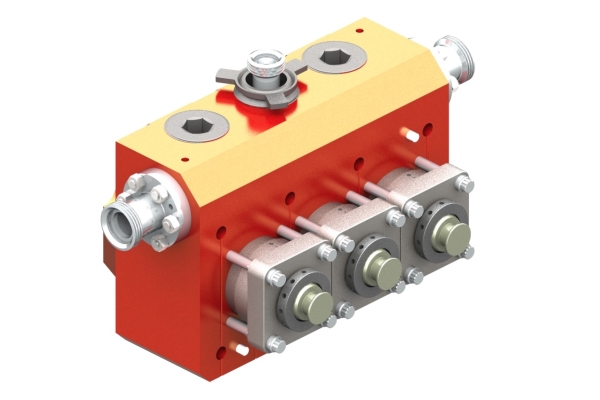

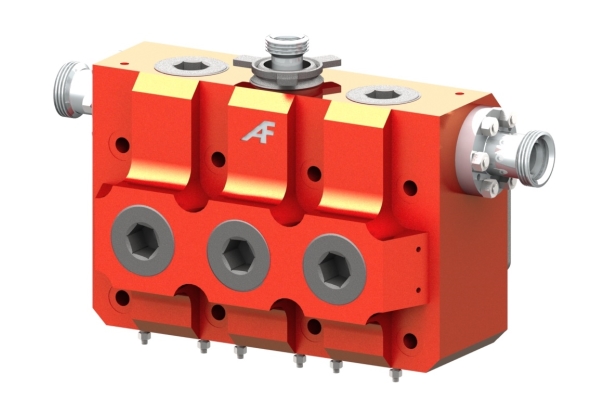

MODEL: AF2400

2400HP Triplex, 10″ Stroke (for *FMC WT2400)

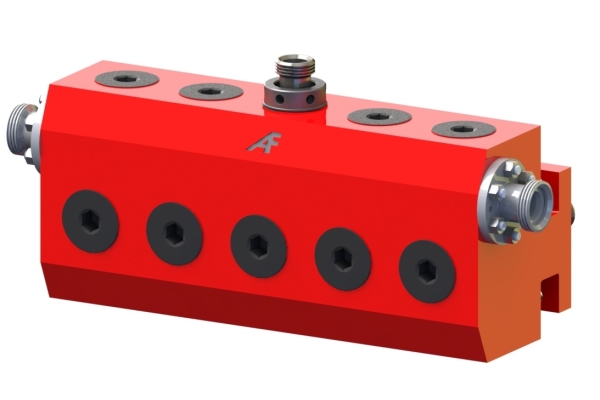

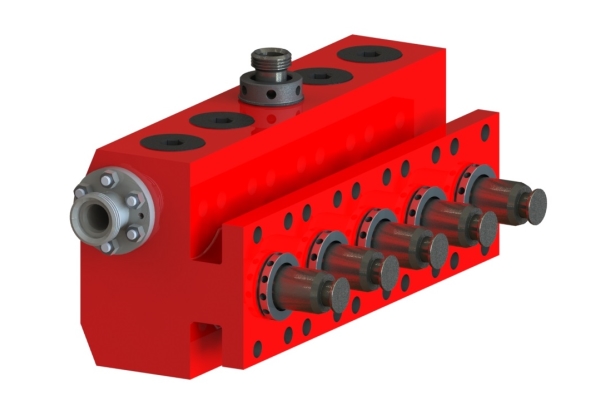

MODEL: AF2500

2500HP Qunituplex, 8″ Stroke, 10″ Centers

MODEL: AF2500Y

2500HP Quintuplex, 60″ Y Block, 8″ Stroke, 12″ Centers

MODEL: AF2500DES

2500HP Triplex, 10″ Stroke (for *SPM TWS2500)

AFE XL SERIES:

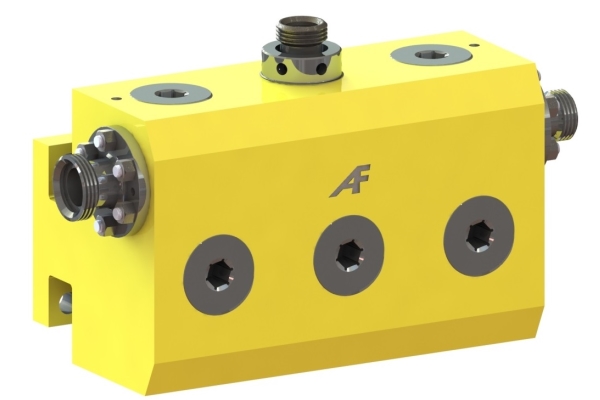

MODEL: AF2250XL

2250HP Triplex, 8″ Stroke, 12″ Centers

MODEL: AF2400XL

2400 Triplex, 10” stroke (for *FMC WT2400)

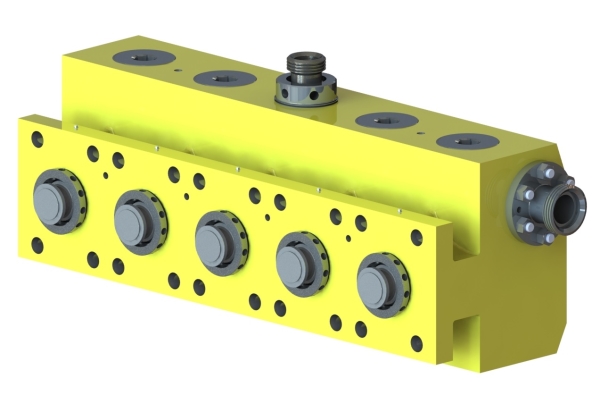

MODEL: AF2500XL

2500HP Quintuplex, 8″ Stroke, 10″ and 12″ Centers

MODEL: AF2500XL-DES

2500HP Triplex, 10″ Stroke w/ Integral Stuffing Box (for *SPM TWS2500)

MODEL: AF2700XL

2700 Quintuplex, 10” stroke (for *FMC WT2700)

XD-Series Valves & Seats
AFE’s Extreme Duty XD-Series valves and seats are designed to perform under the harsh conditions found in the well service and hydraulic fracturing industry.

  • Available for most popular models of high-pressure pumps
  • Optional urethane compounds to suit various proppants
Spare Parts and Expendables

AmeriFrac Fluid Equipment also stocks a complete line of fluid end spare parts and expendables

  • Plungers
  • Packing
  • Seals and gaskets
  • Covers, retaining nuts, valve guides, flanges

*Manufacturers’ names or trademarks used are for identification purposes only. AmeriFrac Fluid Equipment, LLC is not affiliated with these companies.
